Here's the OBD0 ECU.
Original CRX engine loom.
Original CRX front wiring harness.
Here's the front wiring harness with the ECU wiring seperated.
Closer picture of the ECU wiring.
Checking were all of the engine loom connects and labeling the connections.
Modified engine loom, alternator and injector resistor wires extended, rad fan feed wire (blue) added.
Injector resistor pack fixed to bulkhead

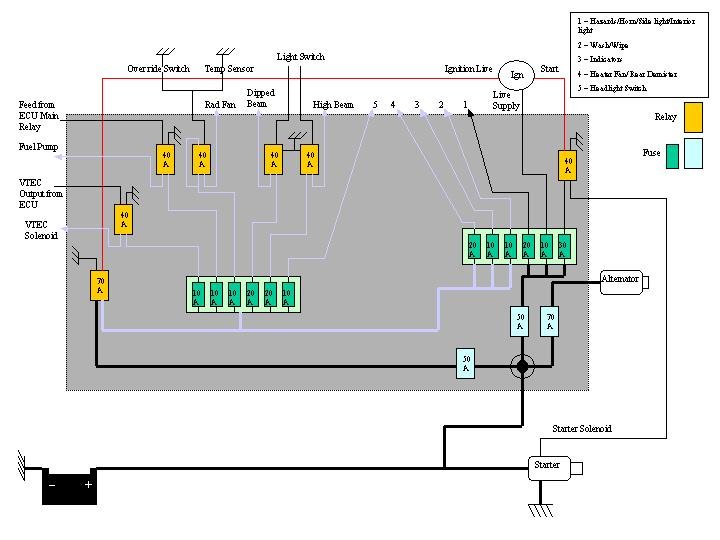

This is my plan for a new fuse box.
Mounting the ECU

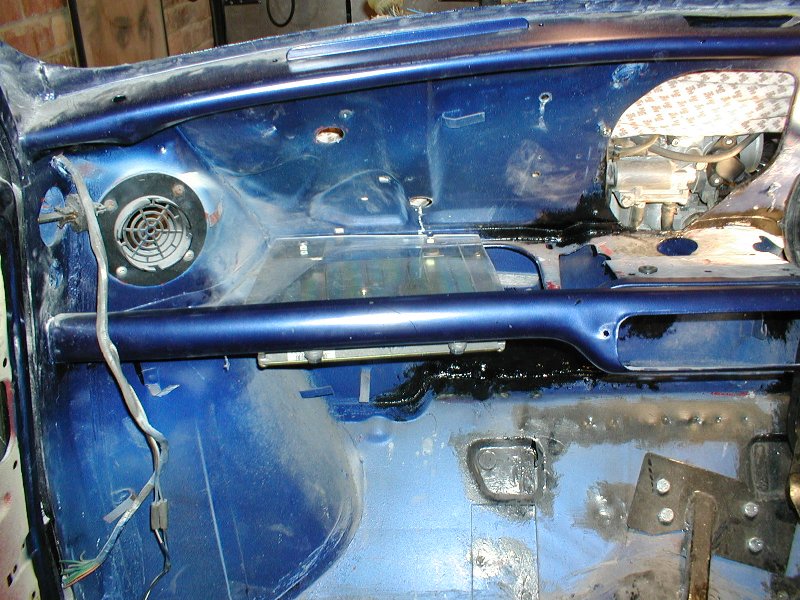

Plexi glass added for mounting the fuses etc
ECU wiring nearly complete

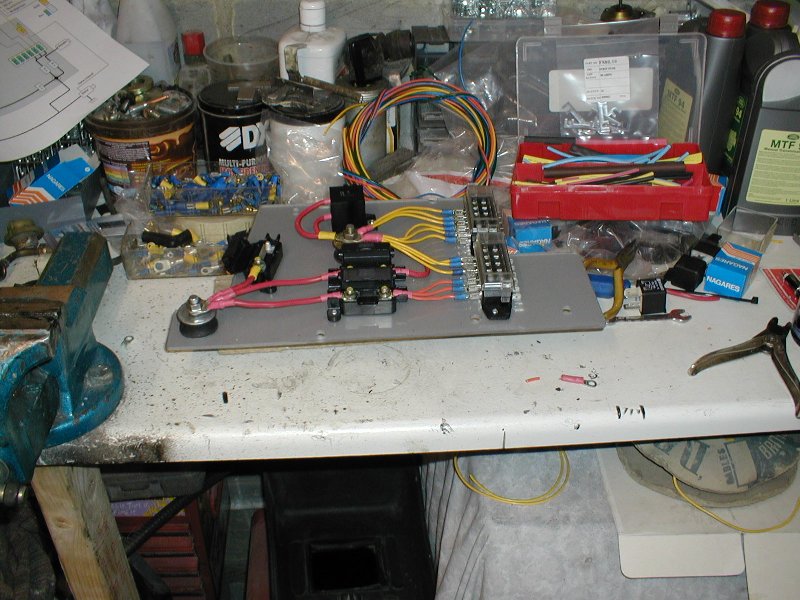

Fuse box

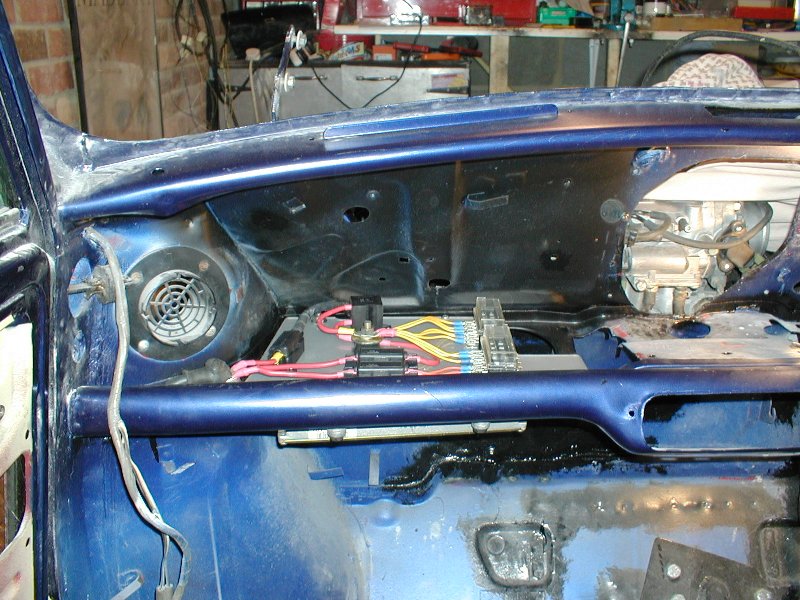

Fuse box fitted in car
All of the wiring works, just needs tidying and the dash fitted

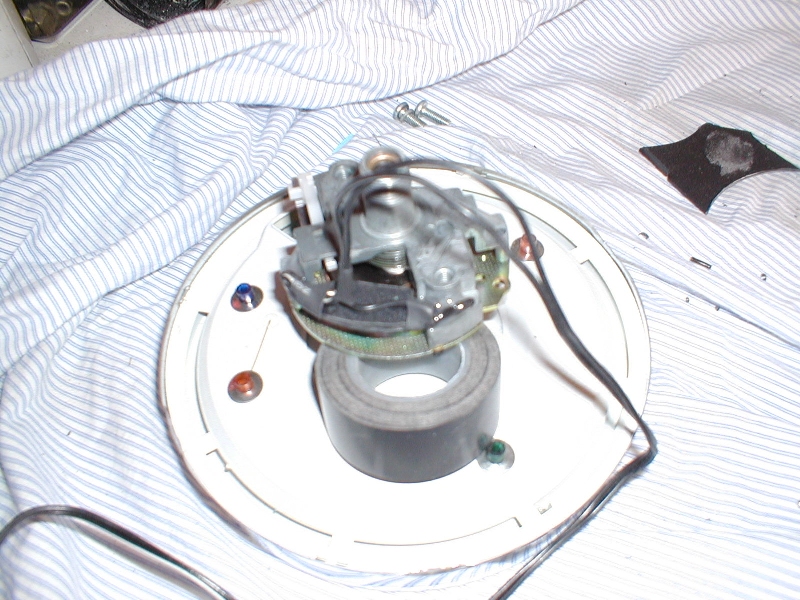

Reed switch fitted to speedo head

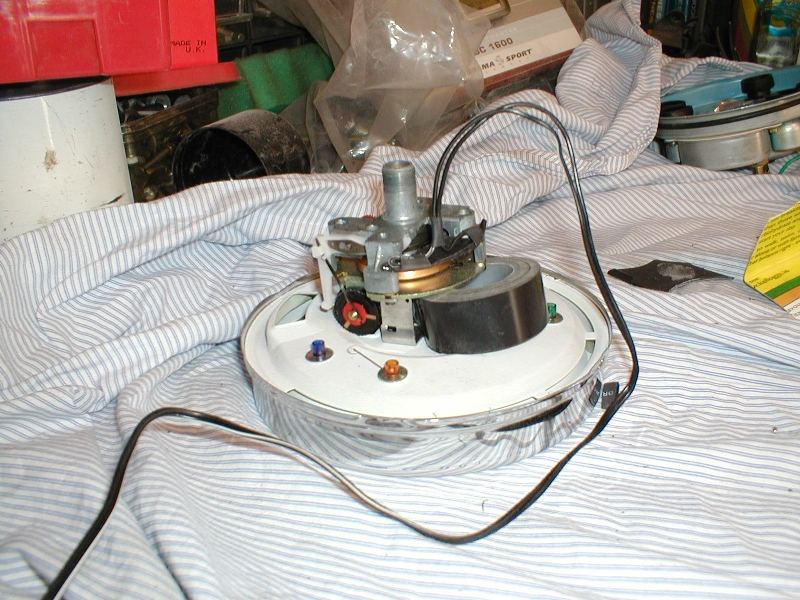

Reed switch fitted to speedo head
*note* This worked and VTEC engages
*note* This worked and VTEC engages
