| Steering |
| The steering rack needs to be bolted to the subframe before fitting the subframe. The mini steering column is shortened slightly and the metro U/J is welded to the end. |
Std steering column |
 |

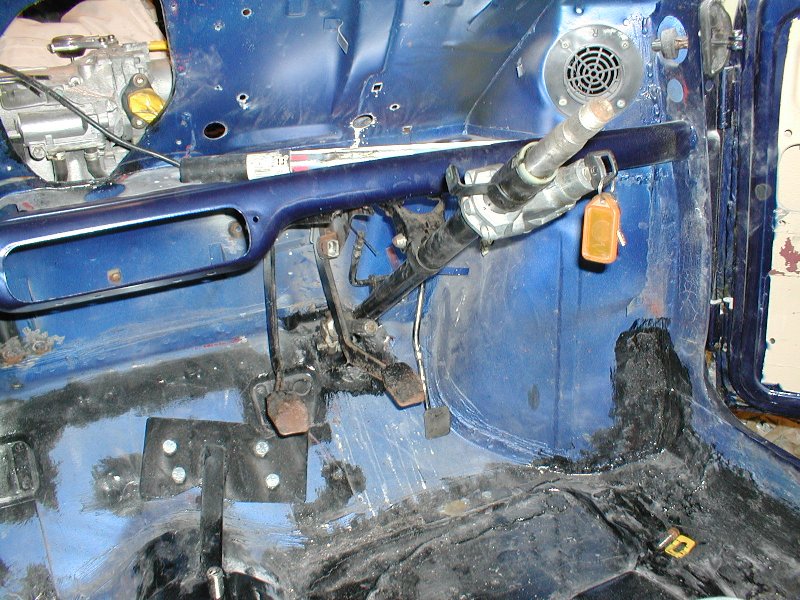

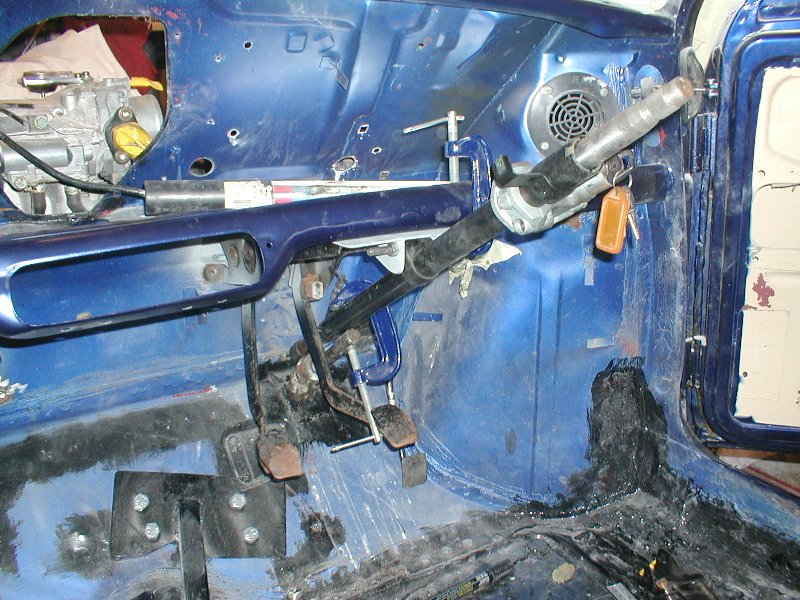

Column clamped in place to see were it needs to be cut, new stronger top bracket has been fabricated. |
 |
|

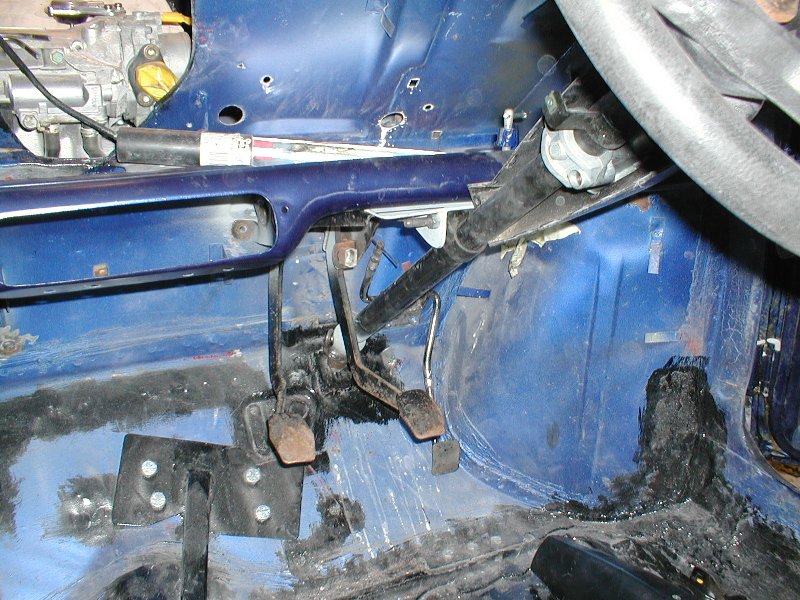

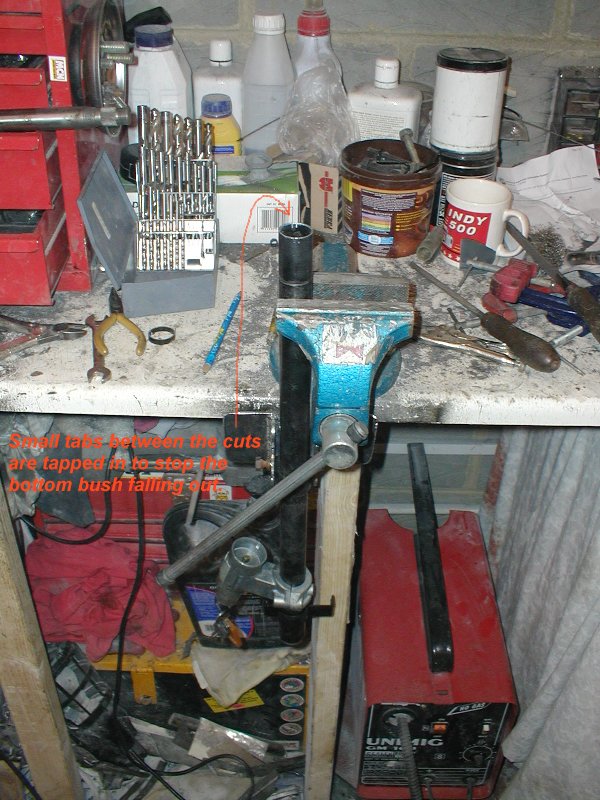

Column being slotted |
 |

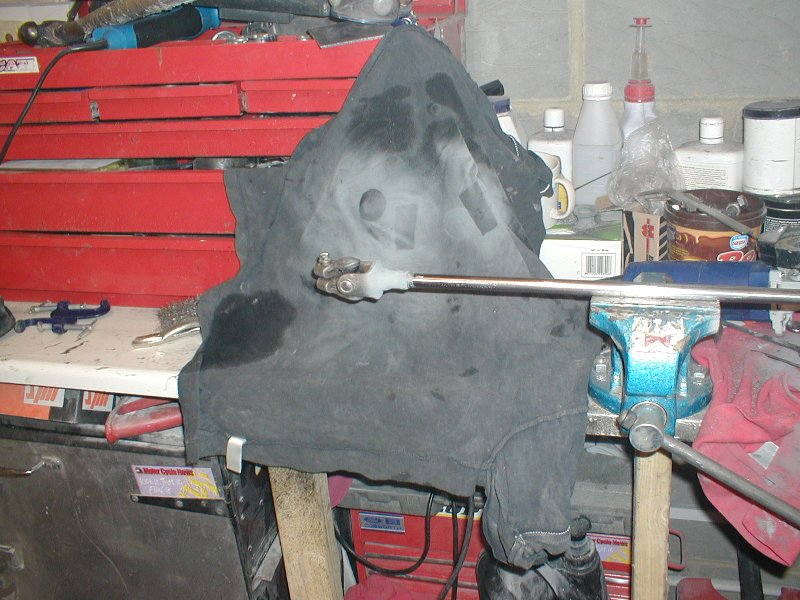

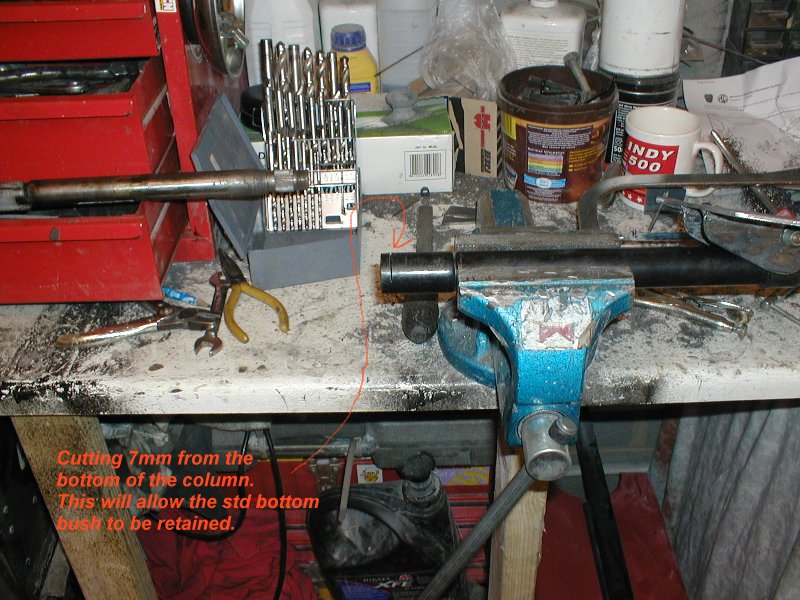

Bottom of the outer column being cut |
 |
|

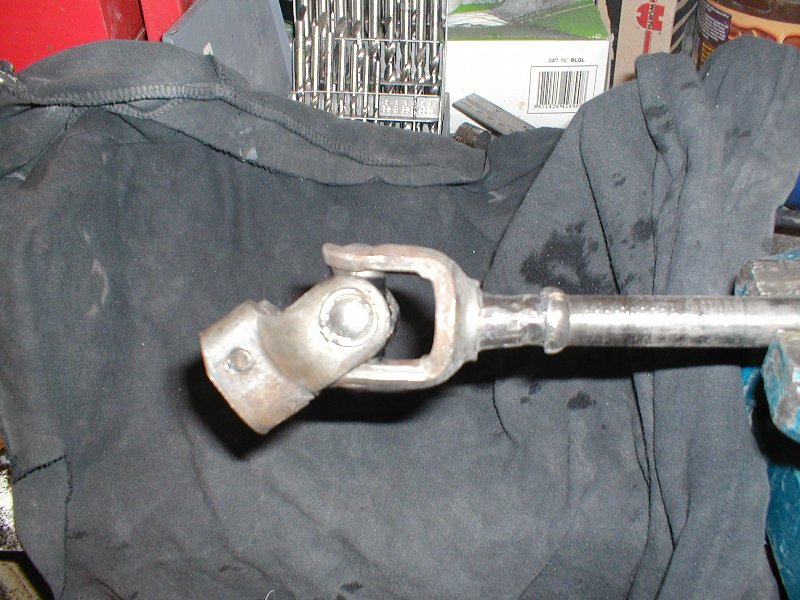

U/J welded to the steering shaft |
 |
Sleeve welded over joint to add strength |
 |
|
Here it is in primer |
 |
Trial fit of column |
 |
|
Trial fit of column, brake pedal just hits the U/J when depressed. |
 |

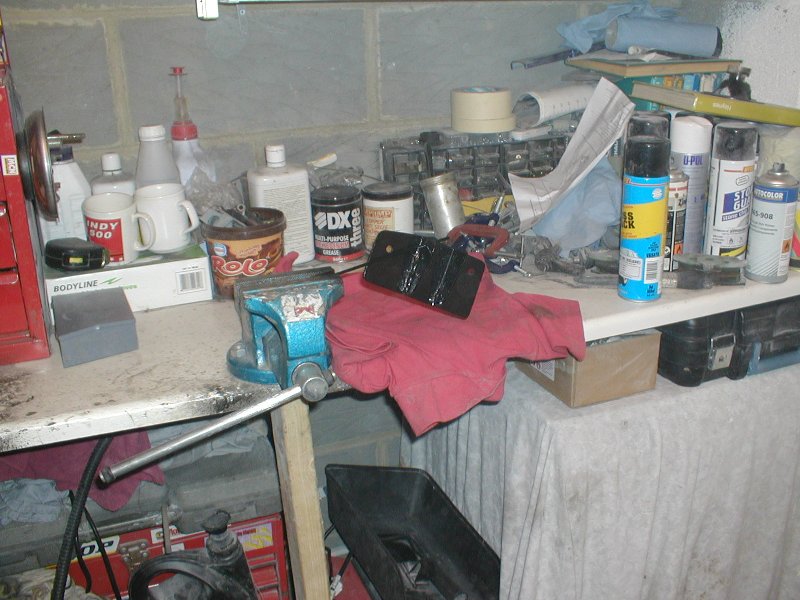

The new top bracket |
 |
| Brakes |
|
I am using Rover MGF vented brakes and calipers with EBC green stuff brake pads, they are the same as Rover Metro GTI MPI and Montego brakes.
I will not be using a servo and so using a master cylinder with the correct bore size is essential to get brakes that work efficiently.
Some members of the 16 Valve Mini forum have had success with using a Girling 0.625 bore master cylinder, I have ordered one from Merlin Motorsport. Total cost £95, this includes all associated parts - resevoir, resevoir bracket, resevoir hose + fittings, adjustable clevis pin and P£P I will also be using the smallest bore rear wheel cylinders (part No GWC 1126, bore 12.7mm) in an attempt to balance the braking without the need of a brake front/rear regulator. For info rear wheel cylinder bore sizes: GWC1126 - 12.7mm GWC1131 - 14.29mm GWC1101 - 15.88mm GWC1129 - 17.46mm GWC1102 - 19.00mm |

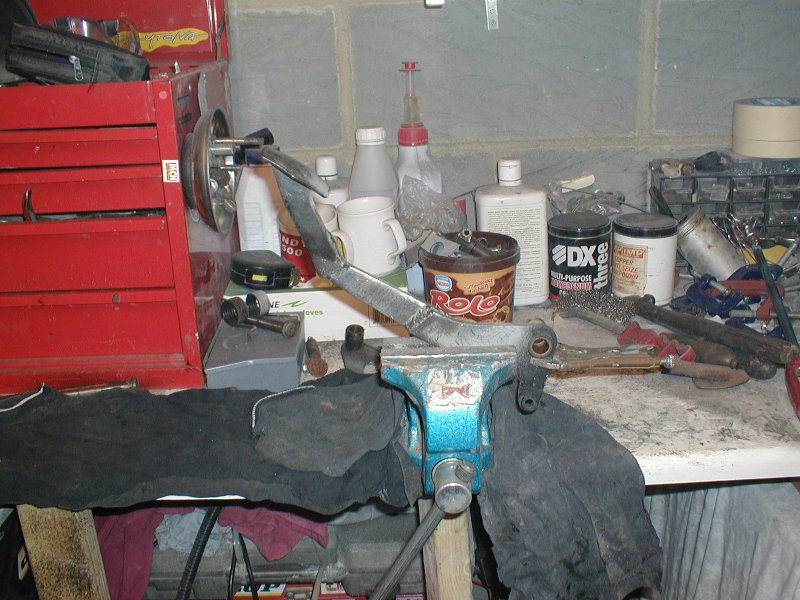

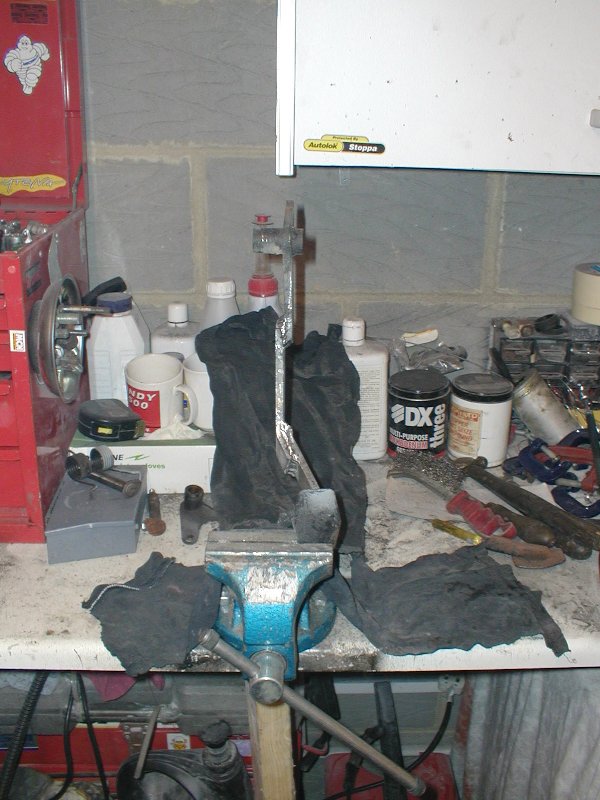

Modified brake pedal |
 |
Modified brake pedal |
 |
|

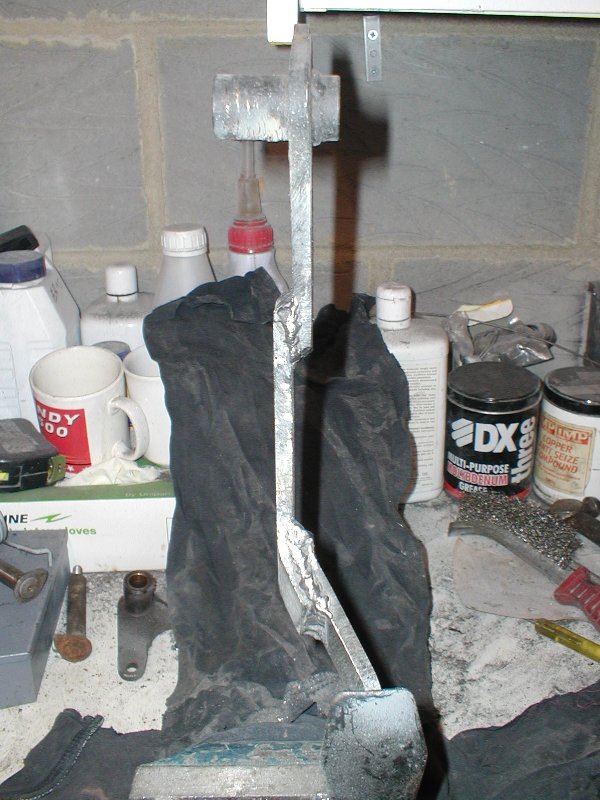

Modified brake pedal |
 |
Modified brake pedal |
 |
|

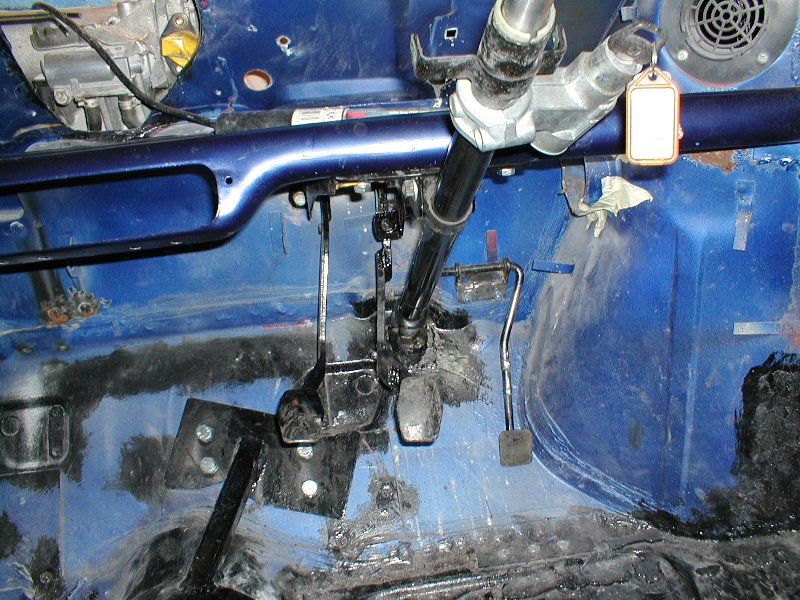

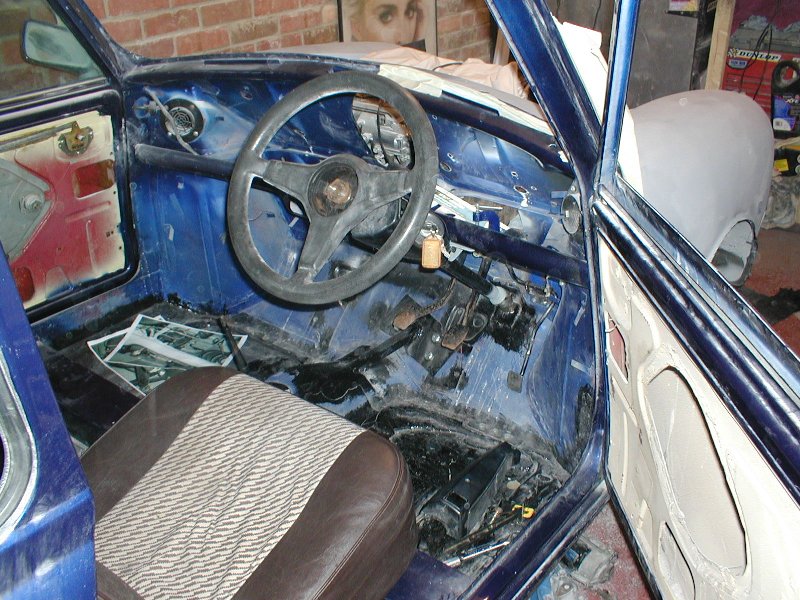

Pedal box and steering column fitted |
 |
Pedal box and steering column fitted |
 |
|
Pedal box and steering column fitted |
 |

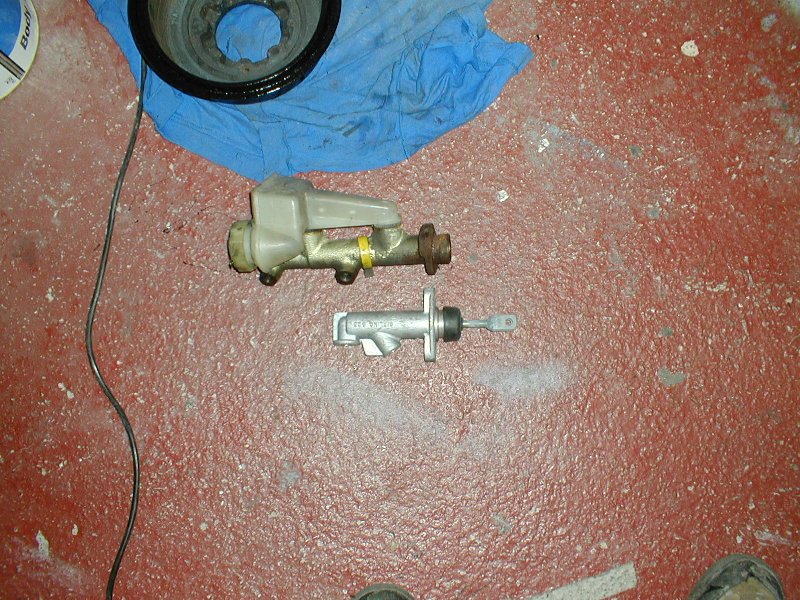

Mini master cylinder and new master cylinder comparison |
 |
|
Picture shows which brake union is needed for front brake pipe to brake hose connection |
 |
Picture shows the correct brake pipe flare needed for front brake pipe to brake hose connection |
 |
|
Brake hose bracket hole needs enlarging and shaped so that hose fits through it |
 |

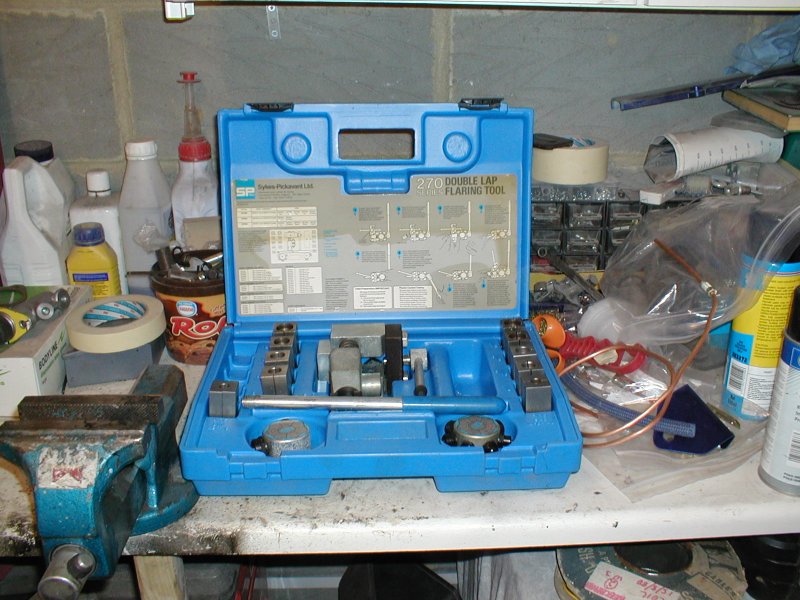

Brake pipe flaring tool kindly loan to me by Steve, highly recommended if you need a flaring tool |
 |
|

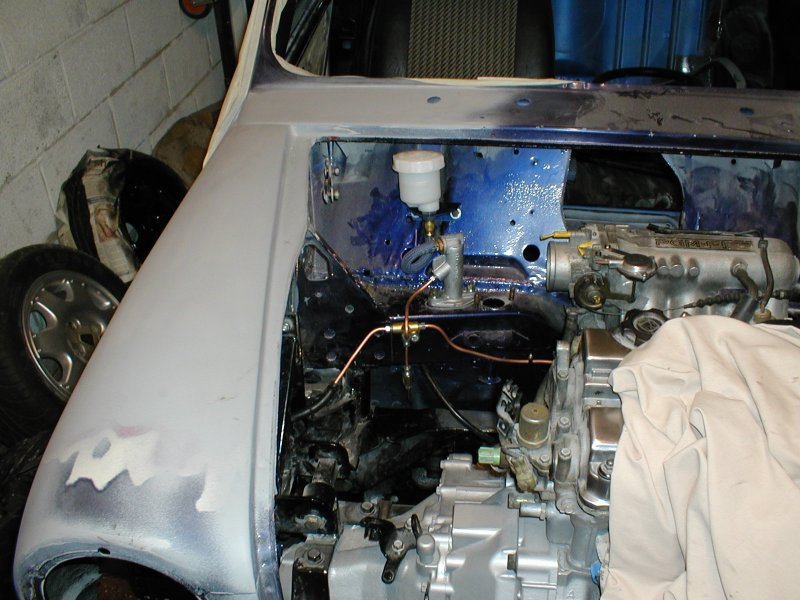

Master cylinder fitted |
 |
Difference between old mini master cylinder and new |
 |
| Suspension |
| The Watsons kit uses coil springs in place of the original metro hydrolastic units. |
Suspension being fitted, spring cover removed |
 |

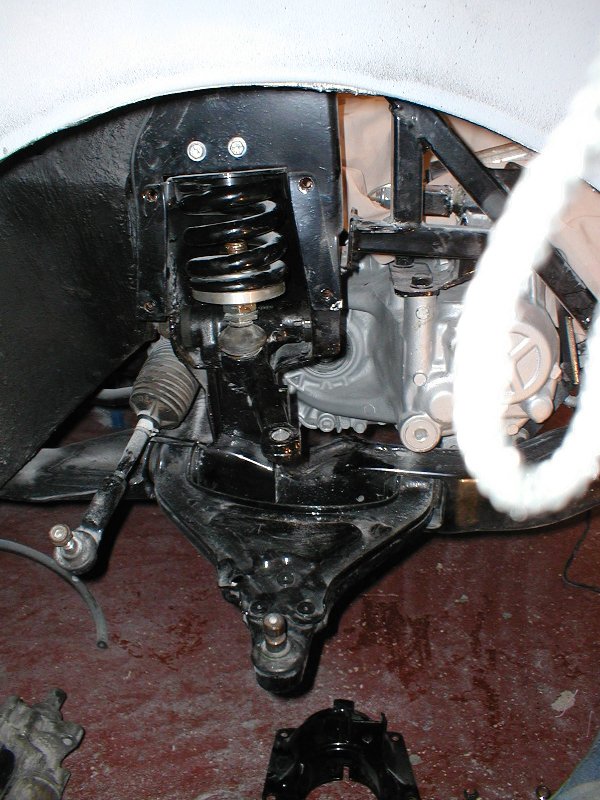

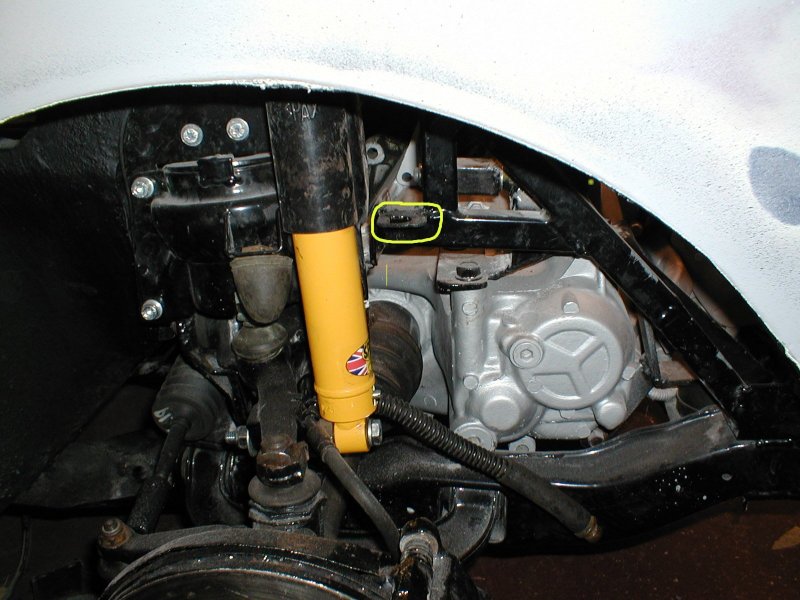

Fully fitted front suspension |
 |
|
Fully fitted front suspension |
 |
Here you can see the wide track of the metro frame and why the wheels will stick out a lot from the bodywork |
 |
|

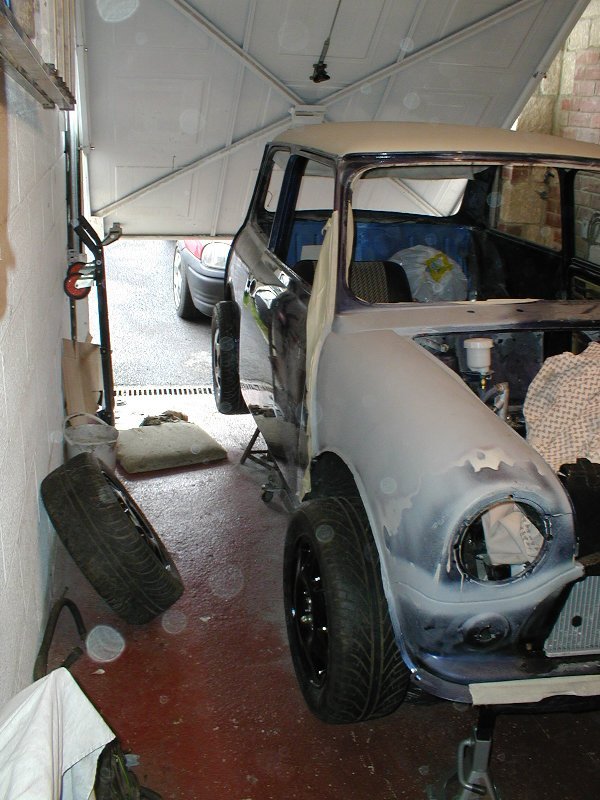

Trial fit of the wheels |
 |
Trial fit of the wheels |
 |
| Driveshafts |
| The metro outer CV/driveshaft utilises a circlip and spring clip, the new Watson driveshafts only uses the spring clip. The Honda inner CV/driveshaft utilises two circlips which are also used on the new driveshafts. |
CV'c fitted to new driveshafts |
 |
