My VTEC engine
VTEC engine

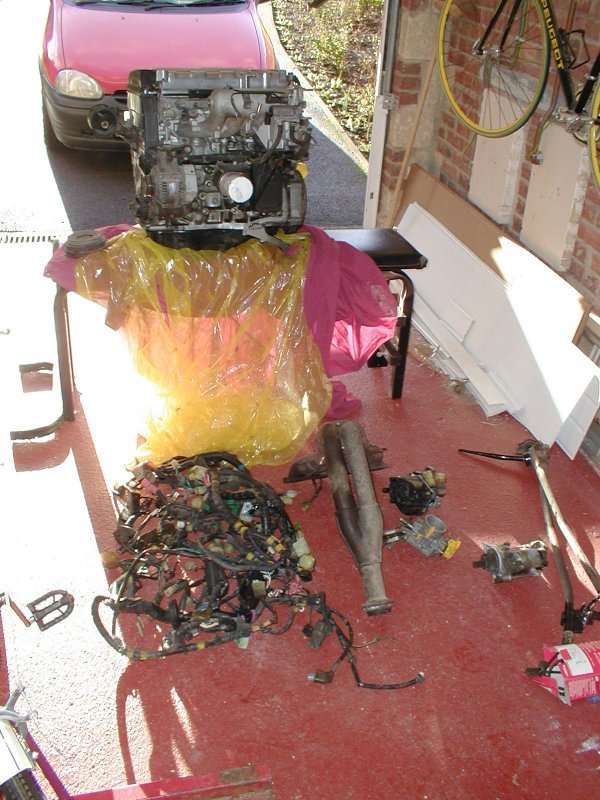

Engine and engine wiring loom
VTEC parts
Other essential parts
Essential VTEC parts

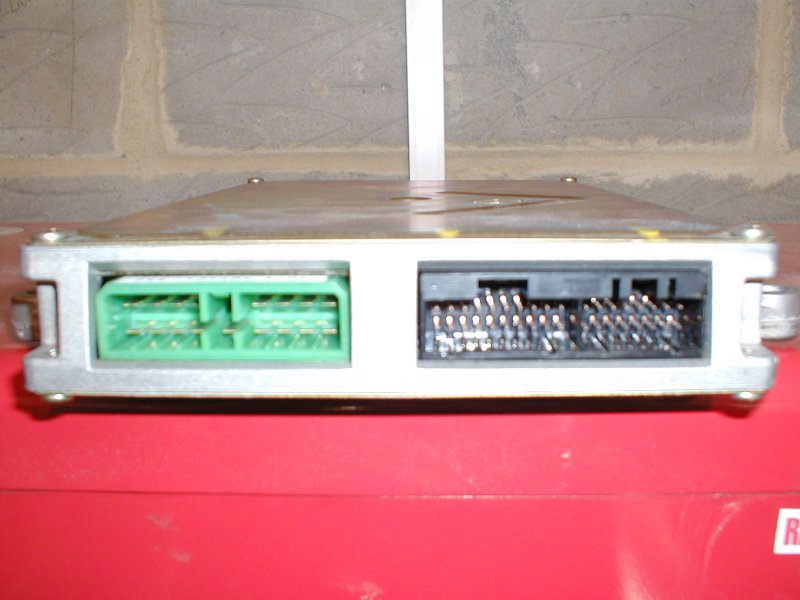

Honda ECU (0BD0)
Honda 0BD0 ECU

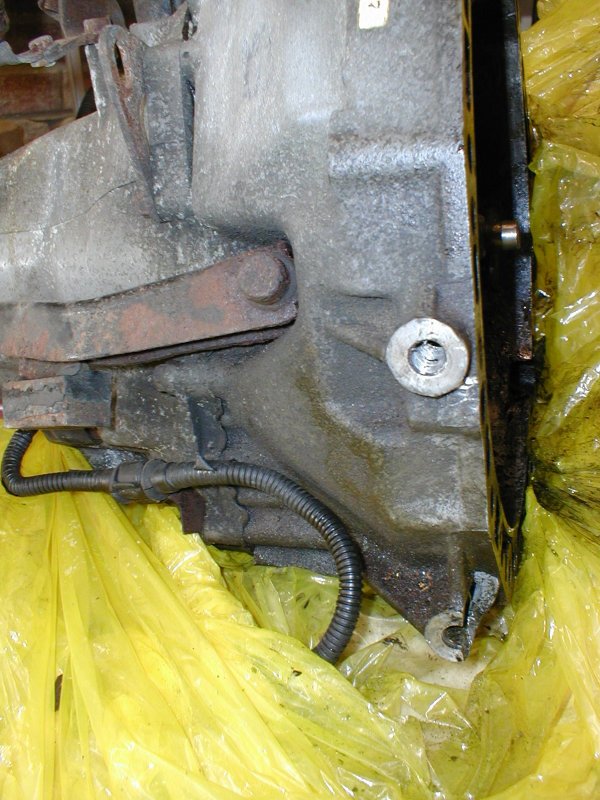

Broken gearbox lug, nice person failed to mention this when I brought it !!!
Broken gearbox lug

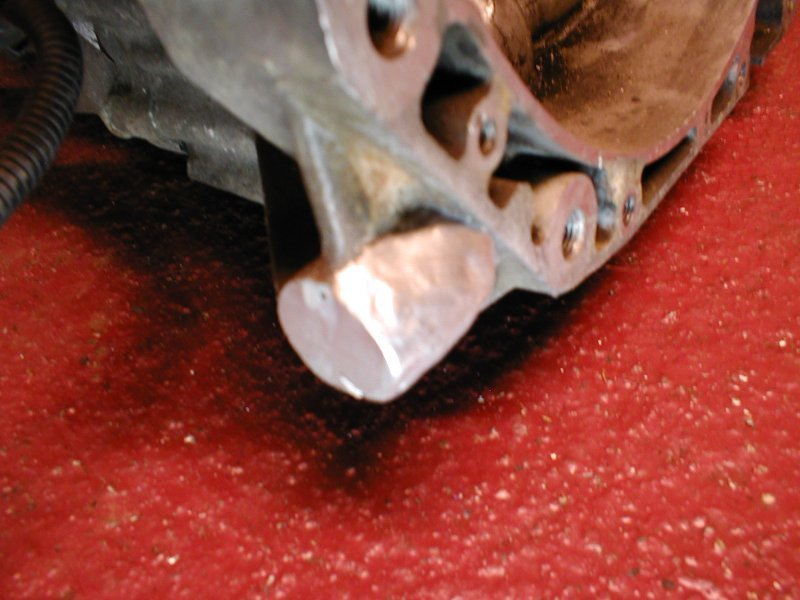

Luckly got it welded up for £15
Repaired gearbox lug
Lug drilled and re-threaded
Repaired gearbox lug

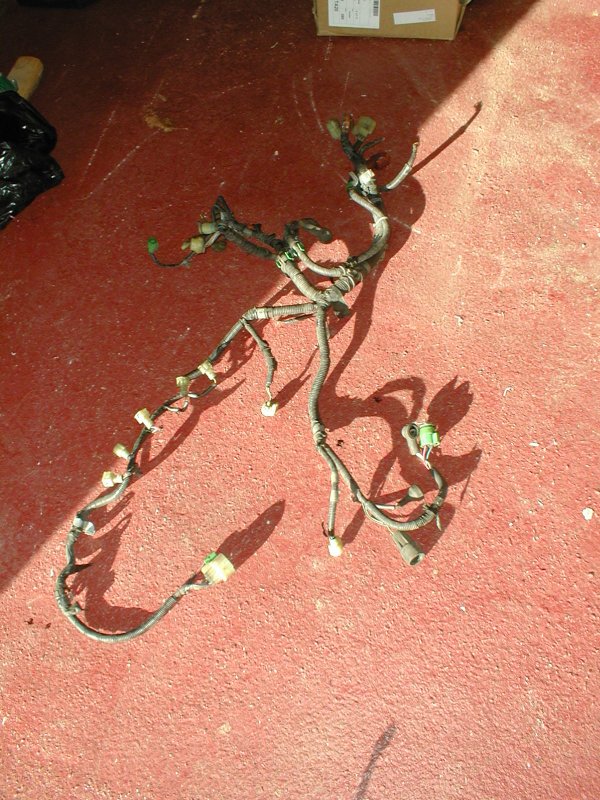

Engine wiring harness
Engine wiring harness

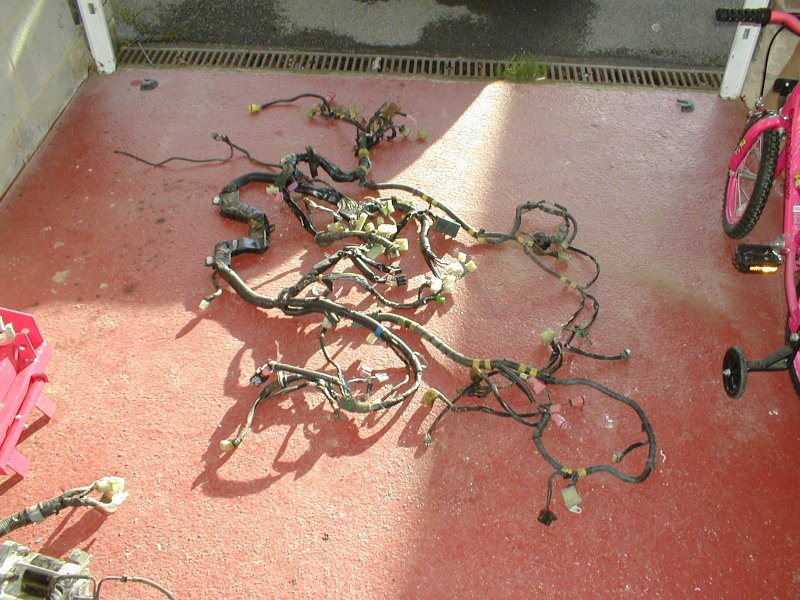

Front wiring harness
Main harness

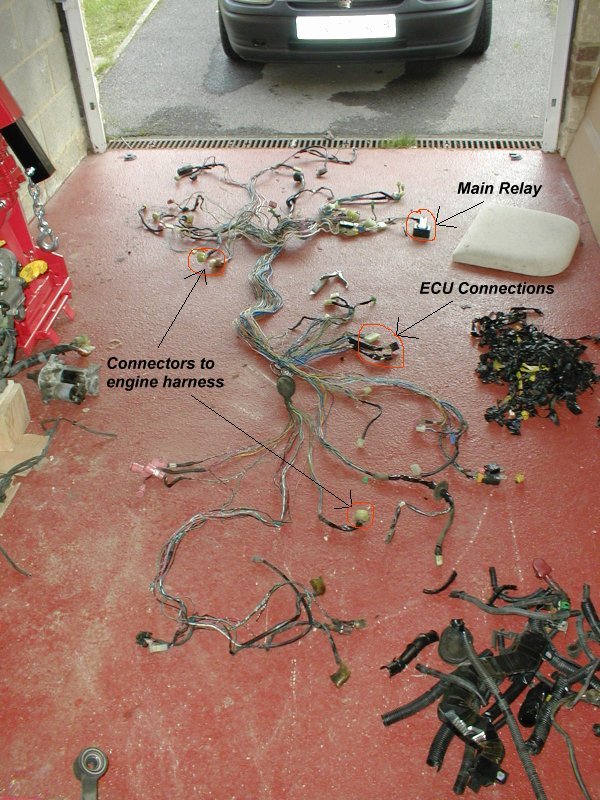

Wiring harness stripped back
Main harness stripped back

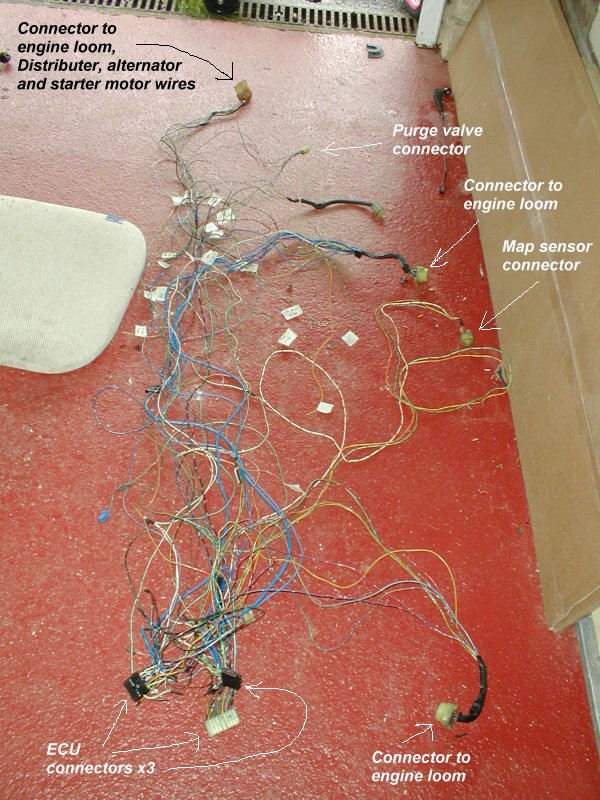

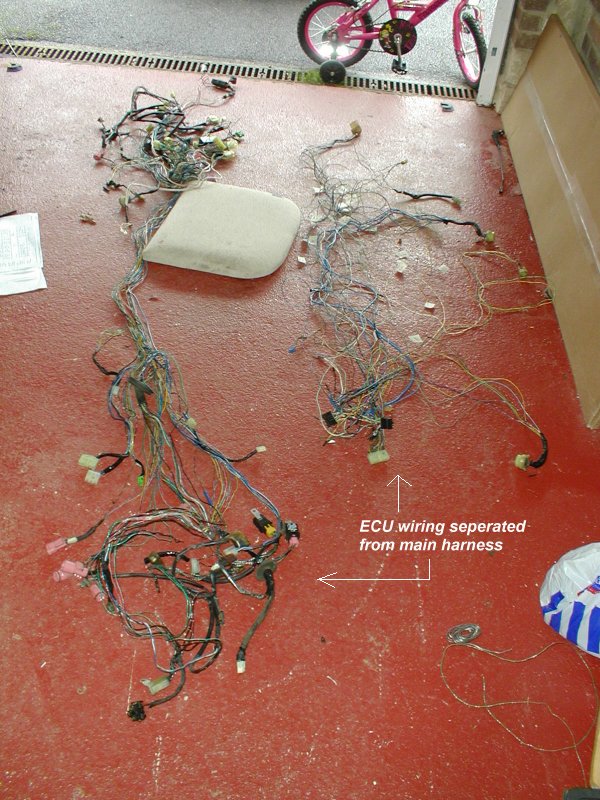

ECU wiring seperated from main harness
ECU wiring seperated from main harness
Closer picture of ECU wiring
Closer picture of ECU wiring
Modified rear subframe
Modified rear subframe
Brackets from old subframe welded on
Brackets welded to rear subframe
Rear subframe painted up
Painted rear subframe

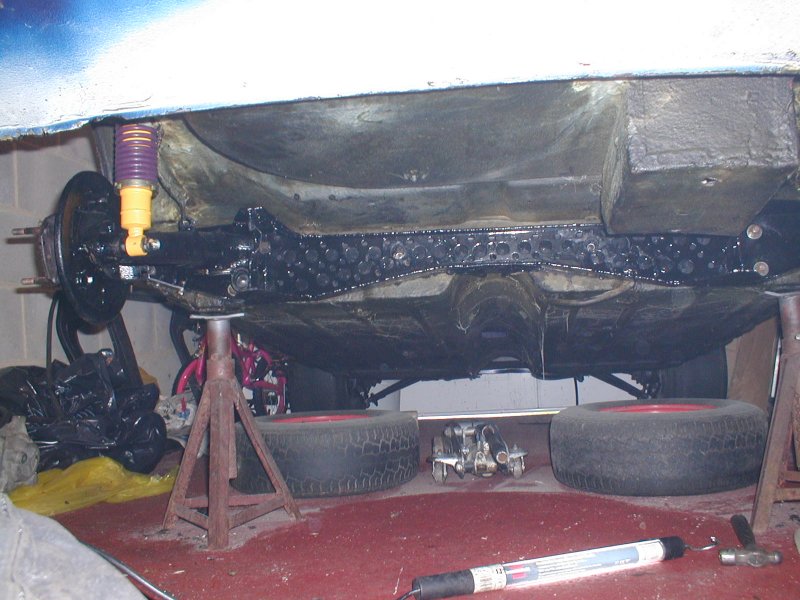

Rear subframe fitted
Fitted rear subframe

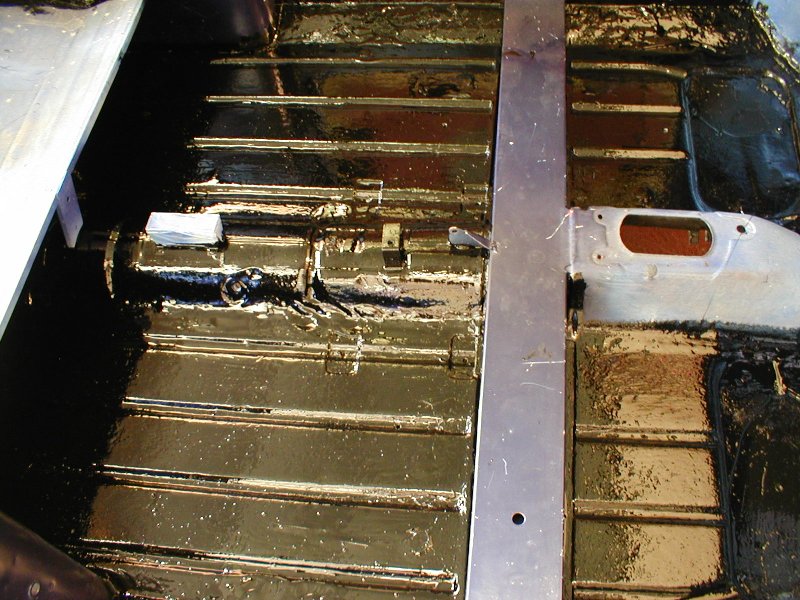

Painted floorpans
VTEC halfshaft
Front of mini coming off
Mini front coming off
A quick check to see what +90mm looks like
VTEC halfshaft

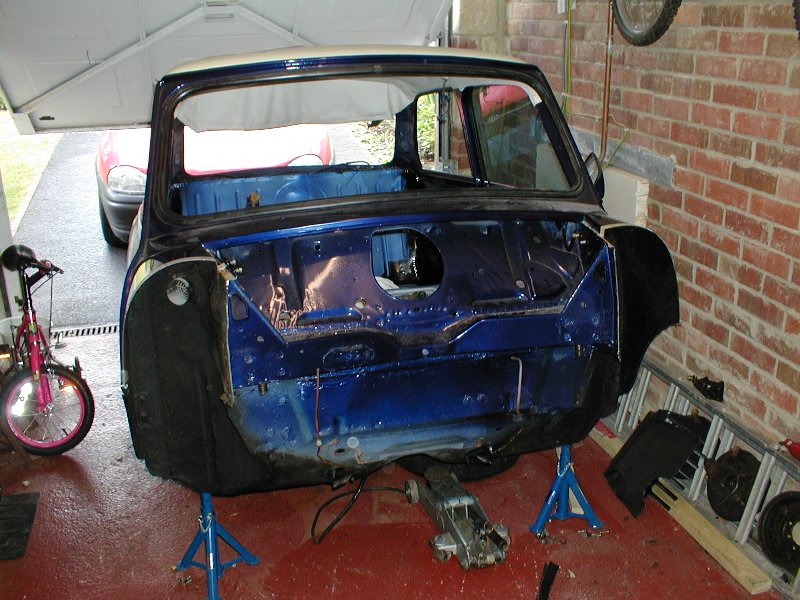

Front totally removed
Mini front coming off

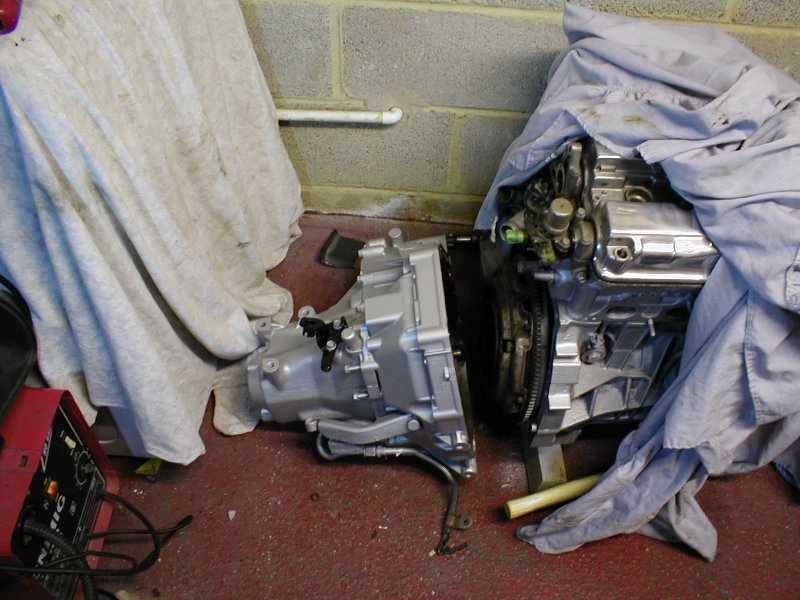

Gearbox after a quick wire brush and paint
VTEC halfshaft

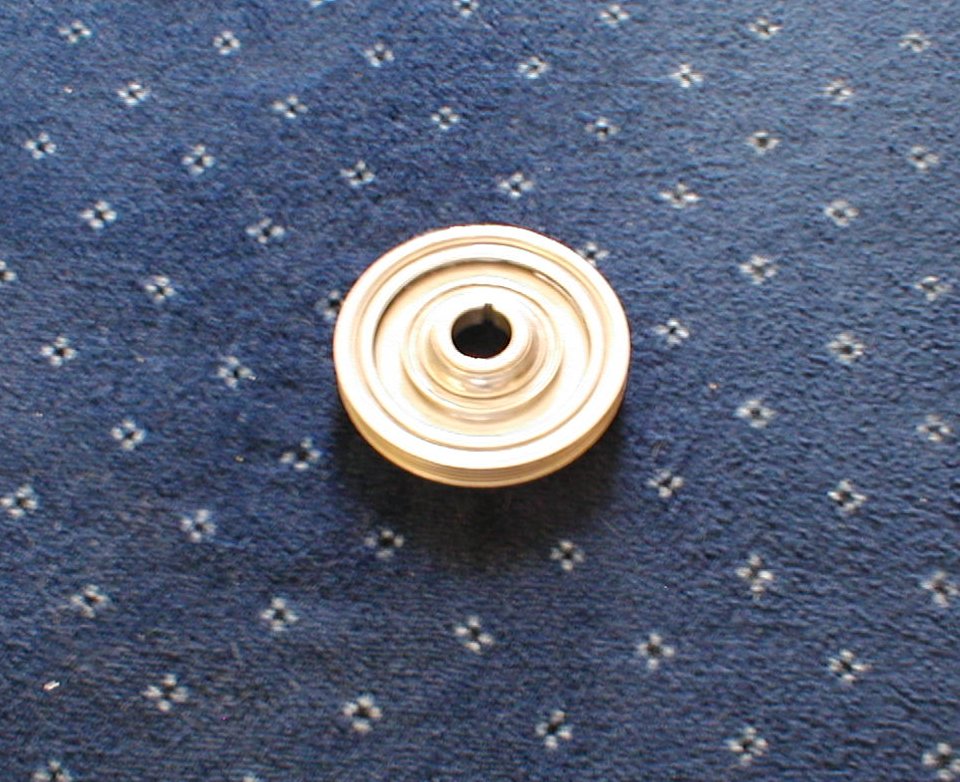

Light weight front pulley I brought off e-bay (£43)
front pulley
VTEC halfshaft, this allows the use of equal length driveshafts
VTEC halfshaft

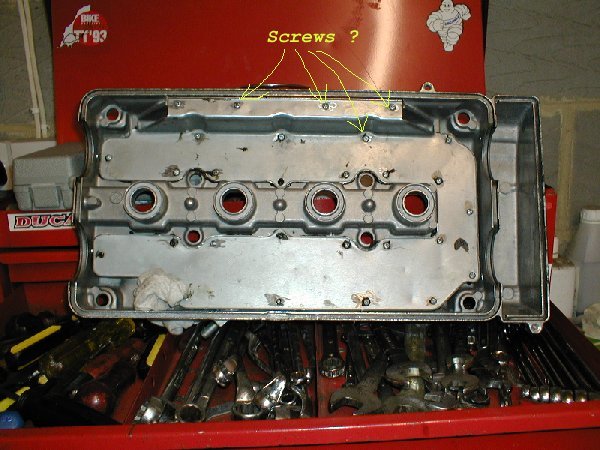

Cam cover has screws holding baffle on, should be rivets !
VTEC cam cover

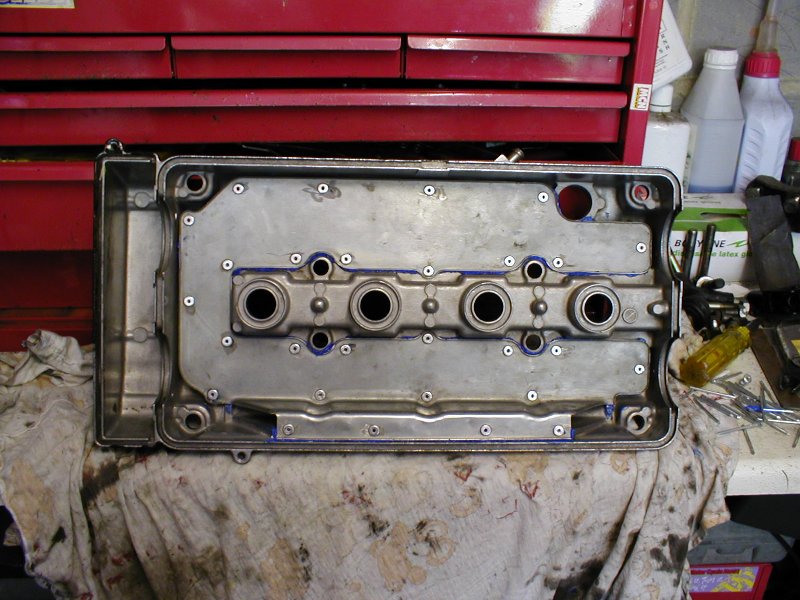

Can cover baffles riveted back on
VTEC halfshaft

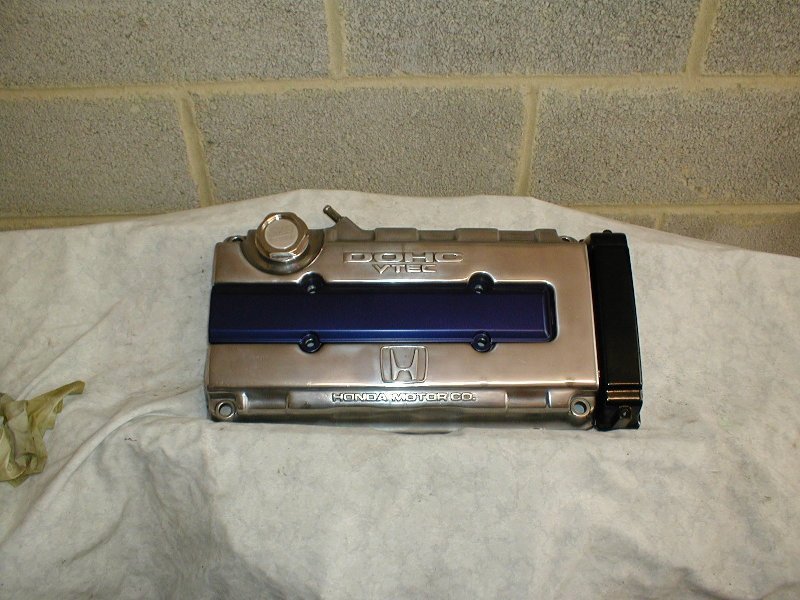

Cam cover polished with the plug cover painted same colour as mini
VTEC cam cover
