ECU's -- Identification

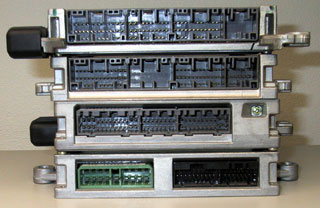

VTEC engines are controlled by 1 of 4 ECU's

Latest version   -   OBDIIb

OBDII

OBDI

Earliest version   -   OBD0
ECU's


All ECU's should have an identifying sticker

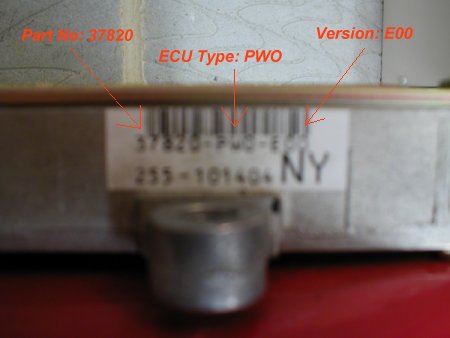

ECU sticker
Part No: This is the standard Honda part number for an ECU (37820)
ECU Type: It is possible to use this Number to identify the engine type that uses this ECU
Version: Identifys which version of the ECU

Example using my ECU number:

Part No: 37820 - all Honda ECU's start with this number

ECU Type: PWO & PR3 used with the B16A1 engine

Version: OOO is the JDM speed limited version of this ECU
             EOO is the European version with no speed limiter :-)

ECU Pins

On-line Honda manual - ECU connections - 1991 CRX
